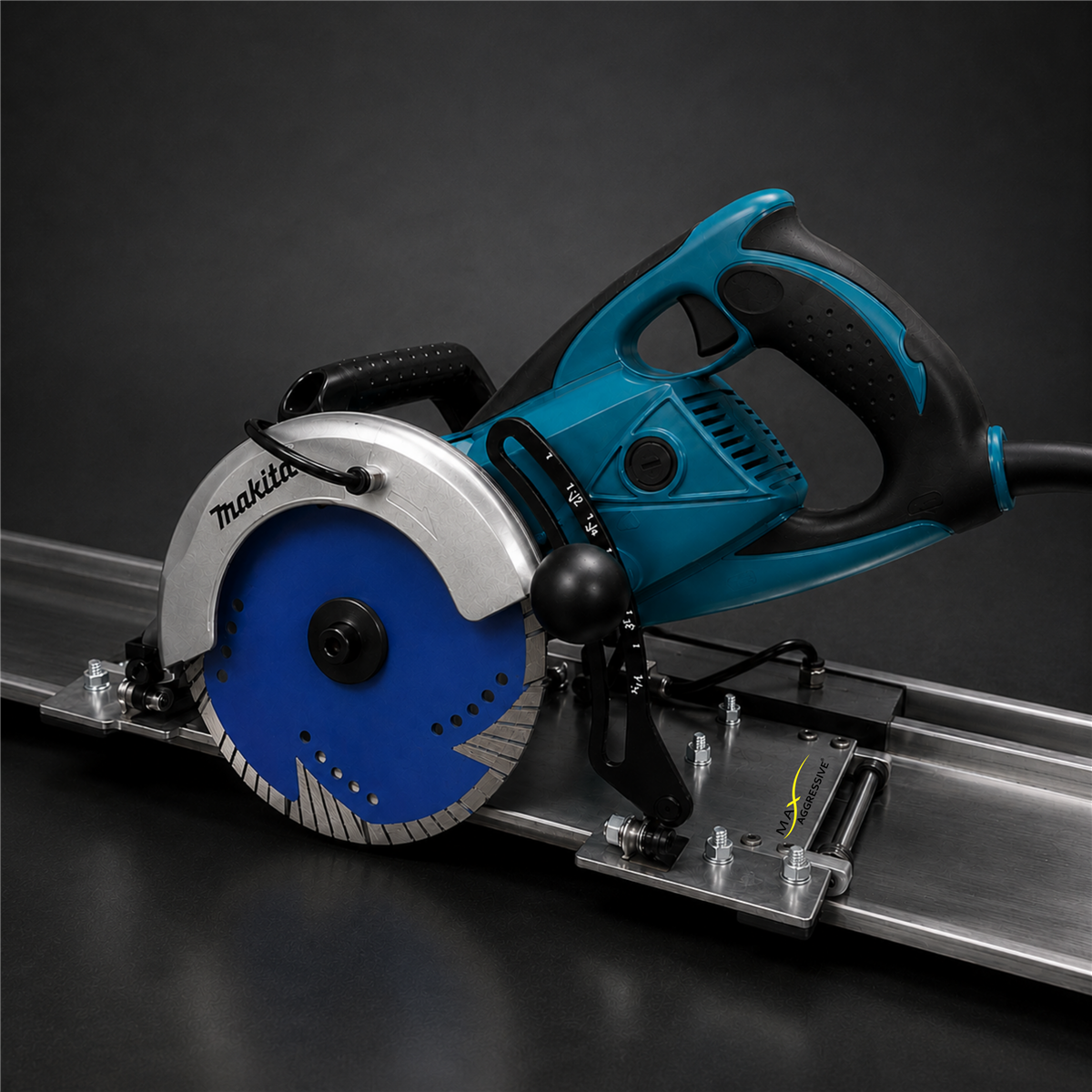

Max50 Jr. Rail Saw Machine
Max50 Jr. Rail Saw Machine


Compact Precision Rail Saw System for Professional Stone Cutting

The Max Aggressive Max50 JR Rail Saw Machine is designed to deliver smooth, stable, and accurate cutting performance for stone fabrication and installation applications.

  • Includes 2 aluminum rails (6.5 ft each) for guided precision cutting
  • Double suction cup stabilization system helps reduce vibration during operation
  • Factory-installed Makita 5477NB Hypoid Saw ready for immediate use

Technical Specifications

Part #: 10.20.0144
Saw Motor: Makita 5477NB Hypoid Saw
Blade Capacity: Up to 8"
Maximum RPM: 4,300 RPM
Cutting Depth at 90°: Up to 4 cm
45° Miter Depth: Up to 3 cm (1-1/4")
Rails Included: 2 x 6.5 ft Aluminum Rails
Rail Fixation: 2 F-Clamps + 4 Adapted Double Suction Cups

What's Included

2 x 6.5 ft Rails
2 F-Clamps
4 x Adapted Double Suction Cups
Water & Air Hoses with Adapters
Factory-Installed Makita 5477NB Hypoid Saw


Product Code: 10200144
:

Details

Details

  • Why This Matters

  • Professional stone cutting applications require precise guidance, stable cutting performance, and reliable portability for both shop fabrication and on-site installation work.

  • What Makes It Different

    • Factory-installed Makita Hypoid Saw comes fully assembled and ready to use
    • Double suction cup stabilization system helps reduce vibration during cutting
    • Lightweight rail system improves portability and setup efficiency
    • Supports straight cuts and 45° miter applications
    • Simple tilt adjustment allows fast and controlled operation

  • How It Performs

    • Delivers smooth and accurate guided cutting performance
    • Provides improved cutting stability on stone surfaces
    • Supports one-man operation for fabrication and installation tasks

  • Result: cleaner cuts, improved stability, and more efficient stone cutting performance for professional applications.

  • Ideal Applications

    • Granite and quartz countertop fabrication
    • Stone slab cutting and trimming
    • 45° miter cutting applications
    • On-site installation and shop fabrication work

  • Important Notes

    • Supports cutting depths up to 4 cm at 90°
    • Supports 45° miter cuts up to 3 cm (1-1/4")
    • Use with proper safety equipment during operation

  • Why Max Aggressive

    • Professional-grade fabrication equipment
    • Reliable performance for demanding environments
    • Trusted by stone industry professionals
